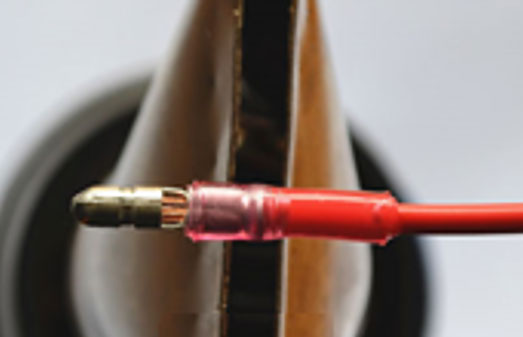

HS-DS-NB06 the heat shrinkable tubing made by Nylon, with
adhesive lining for protecting splices from water and corrosion.
Providing strain relief and against vibration in rugged
environments, which excellently insulates and protects electronic
connections. It offer long-term performance, easy installation, and
a low installed cost, which is more reliable than conventional
crimp terminals.
- Characteristics:
- Shrink ratio 3:1
- Excellent conductivity property
- High transparency, High tensile strength
- Excellent stretch and mechanical damage resistance
- High elasticity keeps steady performance
- Hot melt adhesive provides waterproof property
- Operating temperature :-45 ℃ ~ 135℃
- Minimum shrink temperature:60℃
- Minimum fully recovery temperature:100℃


Clicking on an item's Part Number will add it to your enquiry cartPart # | D | d1 | B | E | L | Colour | Type | Conductor | Wall of Cooper Terminal | Pack Qty |
---|
HS-DS-NB06-01 | 4.8 | 1.6 | 4.0 | 21 | 31 | Red | Male | 0.5-1.0mm2 (AWG22-18) | 0.4mm | 25 |
HS-DS-NB06-02 | 4.8 | 1.6 | 4.0 | 21 | 32 | Red | Female | 0.5-1.0mm2 (AWG22-18) | 0.4mm | 25 |
HS-DS-NB06-03 | 5.8 | 2.2 | 4.0 | 21 | 31 | Blue | Male | 1.5-2.5mm2 (AWG16-14) | 0.4mm | 25 |
HS-DS-NB06-04 | 5.8 | 2.2 | 4.0 | 21 | 32 | Blue | Female | 1.5-2.5mm2 (AWG216/14) | 0.4mm | 25 |
Test Item
|
Characteristics
|
Test condition
|
Un-aged
|
Tensile strength
|
Min. 18MPa
|
Room temp
|
Elongation
|
Min.200%
|
Aged
|
Tensile strength
|
Min. 12.5MPa
|
150℃/7 days
|
Elongation
|
Min. 100%
|
Voltage withstand and breakdown
Voltage(Un-aged)
|
Withstand 2.5KV for 1 minute and
breakdown
|
Room temp.
|
Voltage withstand and breakdown
Voltage(Un-aged)
|
Withstand 2.5KV for 1 minute and
breakdown at least half of un-aged breakdown voltage
|
150℃/7 days
|
Copper corrosion
|
No corrosion of bare copper
|
150℃/7 days
|
Copper stability
|
No sign of degradation Min.
Elongation 100%
|
150℃/7 days
|
Cold bend
|
No crack
|
-40℃/4 hrs
|
Maximum secant modulus (2%)
|
250MPa
|
-
|
Volume resistivity
|
Min. 1014Ω-cm
|
-
|
Heat shock
|
No crack
|
250℃/4 hrs
|
