Cable Jointing Supplies | High Voltage and Low Voltage Supplier of Cable Jointing Kits - Products - Accessories - General Items - Tin Copper Braid

Tin Copper Braid.

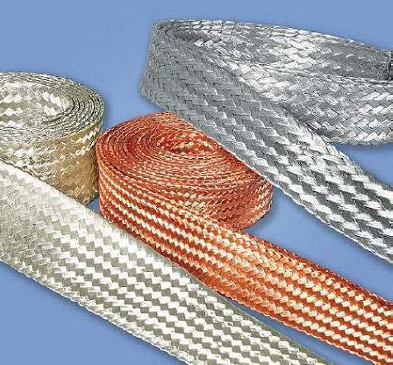

Tin Copper Braid

Range	7mm2 & above
Wire Data	0.05mm (47 swg) to 0.3mm (30 swg)
Material	Electrolytic Grade Converter
Finish	Tinned
Features	Can be used as continuous current carrying connectors

Clicking on an item's Part Number will add it to your enquiry cart

CJS Cat. #	Size SQ.mm	Wire Dia. (mm)	Construction	Width (mm) +10%	Thk. (mm) +5%	Current Carrying Capacity (Amp.)
CJS-TCB 7	7	0.193	24 x 9	10	1.5	40
CJS-TCB 8	8	0.193	24 x 15	13	1.5	50
CJS-TCB 13	13	0.193	24 x 15	15	1.5	80
CJS-TCB 16	16	0.193	24 x 24	17	2	90
CJS-TCB 25	25	0.193	48 x 19	24	2.5	150
CJS-TCB 35	35	0.193	48 x 26	30	3	175
CJS-TCB 50	50	0.193	48 x 37	40	4	250
CJS-TCB 70	70	0.193	48 x 56	45	5	300
CJS-TCB 95	95	0.193	48 x 74	45	6	350

** Other sizes available upon request
