ETC DB 24/630 Shielded Fore-Connector
Up to 24kV, 630 Amp Class
General:
The ETC DB 24/630 Shielded Fore-Connector is a shielded and
insulated termination, rated 630 amps, up to 24kV, connected with
underground cable ranging from 35 to 300mm2 (conductor cross
section). It meets the requirements of DIN 47636 Standard.
The ETC DB 24/630 Shielded Fore-Connectors are molded using high
quality peroxide-cured EPDM insulation. It is used to terminate
high-voltage underground cable to switchgear, RMU and 630 amps
junctions equipped with deadbreak bushings. Shielded
Fore-Connectors are designed for used on solid dielectric cable
(XLPE or EPR).
For piggy back connection - DBS 24/630 can be used.
Add to Cart

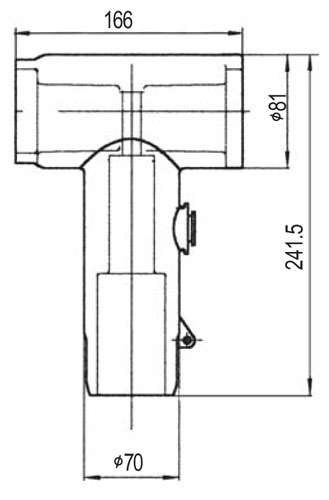

ETC DBS 24/630 Shielded Sub-Connector
Up to 24kV, 630 Amp Class
General:
The ETC DBS 24/630 Shielded Sub-Connector is a shielded and
insulated termination, rated 630 amps, up to 24kV, connected with
underground cable ranging from 35 to 400 mm2 (conductor
cross section). It meets the requirements of DIN 47636
Standard.
The ETC DBS 24/630 Shielded Sub-Connectors are molded using high
quality peroxide-cured EPDM insulation. It is used to
terminate high-voltage underground cable to switchgear, RMU and 630
amps junctions equipped with deadbreak bushings. Shielded
Sub-Connectors are designed for used on solid dielectric cable
(XLPE or EPR). In order to provide more cable branch
circuits, the Shielded Sub-Connectors can be connected with the ETC
DB 24/630 Shielded Fore-Connector.
Add to Cart
ETC DB 24/250 Deadbreak Elbow Connector
Up to 24kV, 250 Amp Class
General:
The ETC DB 24/250 Deadbreak Elbow Connector is a fully shielded and
insulated plug-in termination, rated 250 amps, up to 24kV,
connected with underground cable ranging from 25 to 120mm2
(conductor cross section).
The ETC DB 24/250 Deadbreak Elbows are molded using high quality
peroxide-cured EPDM insulation. Is is used to connect underground
cable to transformers, switchgear or Ring-Main-Units (RMU) equipped
with mated Deadbreak Bushings. The test point is available for use
with hot line voltage indicators.
It is the essential component for high-voltage electrical
connection of the pad-mounted transformers and Ring-Main-Units.
Add to Cart

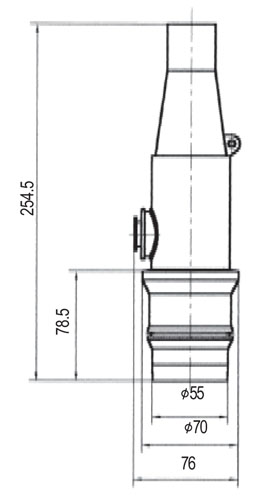

ETC SDB 24/250 Deadbreak Straight Connector
Up to 24kV, 250 Amp Class
General:
The ETC SDB 24/250 Deadbreak Straight Connector is a
fully-shielded and insulated plug-in termination, rated 250 amps,
up to 24kV, connected with underground cable ranging from 25 to 120
mm2 (conductor cross section).
The ETC SDB 24/250 Deadbreak Straight Connectors are molded using
high quality peroxide-cured EPDM insulation. It is used to
connect underground cable to transformers, switchgear and 250 amps
bushings. The test point is available for use with hot line
voltage indicators.
It is the essential component for high-voltage electrical
connection of the padmounted transformers, submersible transformer,
switchgear and deadbreak bushings. The design of the straight
connector allows connection of the cable in a straight line, not
bent at an angle of 90o.
Add to Cart
ETC LB 15/200 Loadbreak Elbow Connector
For 15kV, 200A
General:
The ETC LB 15/200 Loadbreak Elbow connector is full-shielded and
insulated plug-in termination, rated 200 amps, 15kV, connected with
underground cable ranging from 25 to 120mm2 (conductor cross
section). It's loadbreak probe with an ablative arc-follower tip
provides dependable loadbreak switching characteristics.
The ETC LB 15/200 Loadbreak Elbows are molded using high quality
peroxide-cured EPDM insulatino. It is used to connect underground
cable to transformers, switchgear and 200 amp junction equipped
with loadbreak bushings. The test point is available for use with
hot line voltage indicators.
Add to Cart

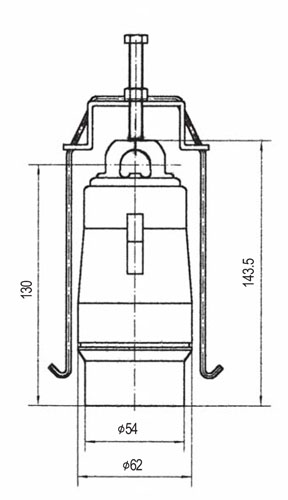

ETC DBEC 24/250 Deadbreak Insulated Protective Cap
Up to 24kV, 250 Amp Class
General:
The ETC DBEC 24/250 Insulated Protective Cap is an accessory
device designed to electrically insulate and mechanically seal
deadbreak bushing interfaces. Is also protects the
de-energized interface from dust and damp. The cap can be
used for permanent or temporary installation on 250A bushings.
If there is a reserved interface in the bushings, the
insulated protective cap must be used. This cap is molded of
high quality EPDM insulation. When mated to a deadbreak
product and the drain wire is attached to ground, the insulating
protective cap provides a fully shielded insulating cover for
energized deadbreak bushings.
Add to Cart
