Ply-10
Insulating Mastic
A self-amalgamating, insulating mastic for insulating and
sealing all types of overhead and direct buried electrical
connections up to 600 Volts. Ply-10 has superior adhesion to
metals, cable insulations, and jackets with no adverse effect on
polymeric conducting shields. For watersealing duct work, cable
ends, and all types of splices.
Clicking on an item's Part Number will add it to your enquiry cartCJS Catalogue Number | Colour | Dimensions |
---|
PLY-10-25 | Black | 25mm x 3.2mm x 3m |
PLY-10-95 | Black | 95mm x 3.2mm x 3m |

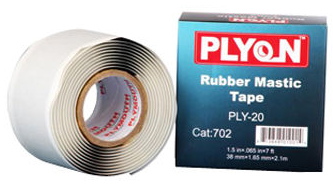

Ply-20 Rubber
Mastic
A self-bonding mastic tape consisting of an ethylene propylene
rubber (EPR) backing, bonded to a tacky, temperature stable,
electrical grade mastic. Use for insulating and moisture sealing
splices and terminations on solid dielectric cable. can be wrapped,
stretched, or molded around irregular shapes for insulation
build-up, water-sealing and surface protection. Provides excellent
electrical properties, superior adhesion, moisture and chemical
resistance. For primary insulation up to 2 kv.
Clicking on an item's Part Number will add it to your enquiry cartCJS Catalogue Number | Colour | Dimensions |
---|
PLY-20-25 | Black | 25mm x 1.65mm x 3m |
PLY-20-51 | Black | 51mm x 1.65mm x 3m |

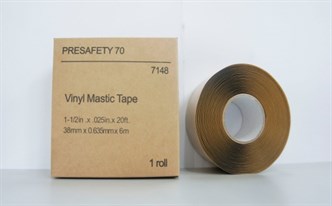

Ply-Presafety 70 Vinyl Mastic (VM
TAPE)
A self-fusing, mastic compound with an all-weather, premium
vinyl backing that can be used for insulating and water-sealing
electrical connections through 600 volts. Small roll sizes
can be stretched and moulded around irregular shapes, even in tight
locations. Provides excellent electrical properties, superior
adhesion, and chemical resistance, Vinyl backing adds UV
protection. Use for insulating overhead and direct buried low
voltage connections, motor lead connections, and cable and condult
repair.
Clicking on an item's Part Number will add it to your enquiry cart
Did you know...
When Applied, Plyon low voltage rubber tapes
form a homogeneous, void free mass to both insulate and waterproof.
Most must be protected from the elements with a plastic vinyl
electrical tape like Plyon Pro-43 or friction tape. Ply-127 can
insulate, waterproof, and protect a low voltage splice from the
elements without the need for overwrapping. Being
linerless, Ply-127 applies much faster, easier and reduces the
cleanup time.
